A word cloud of six hours of Scott Brown's Facebook wall after crossing party lines

There's a lot of hate, and some love, on Republican Scott Brown's Facebook wall after he voted with the democratic majority on his first vote.

I took six hours of posts from 9pm EST backwards, stripped out Facebook words (e.g. like, hours, etc.), removed some common names, and ran it through ManyEyes.

Tableau Public. Cost of raising a child (controlling for inflation)

The Guardian newspaper in the UK often posts interesting data for its readers to mess with and comment on. The latest on the DataBlog ("where facts are sacred") is a data set showing how the cost of raising a child has increased in the UK by 43% since 2003.

The data is from an insurance company, Liverpool Victoria. In neither this data article or the main editorial is the method of data collection described. It's essential to describe this - A lack of visibility into methods, however reliable the reporting source, should quickly lead you to question the findings.

The other issue is that the costs don't seem to have been adjusted to changes in the value of currency (be that through inflation or other methods). Any time monetary values are shown on a time-axis spanning more than a few months (under normal inflation values), the values should be normalized to a single point.

This is my take on the data using Tableau Public, I have presented both the non adjusted costs, and the costs adjusted using the UK's consumer price index. The best normalization probably would be to median wage after tax, as these truly reflect the ability to pay for raising a child, but the CPI will at least give a more balanced view. You can see that the actual increase is about 22% from 2003, and that the only real contributors to this are childcare and education costs because they have increased the most above CPI, and they are the majority of the expenses. The problem with using CPI is that if you used a fine enough detail (e.g. the CPI of providing childcare), the results should, of course, be flat. This is why choosing how to deal with costs and time is far from straightforward.



Concerning my continued engagement with Tableau Public - it took a while to get the charts how I wanted them - I'm still on an enjoyable learning curve with the new software. There are a few bugs to iron out - for example it doesn't handle null values in an expected way (treats them as zero) - maybe that's still higher up on my learning curve..

What our kids are learning

Being in the data business, I tend to critique most charts or visualizations I see. I am pleased to note that not only is my son's kindergarten already pushing an understanding of data, but that so far the charts have all been of the bar variety.

While of course one could labor on the excessively strong grid lines reducing the data-ink ratio, I think I'll let it slide this time.

I do hope that pie charts aren't being reserved for 1st grade as they are "more advanced"..

If your business has data that you would like to know more about, maybe you need some bar charts hand crafted by me (or my son) with crayons, or possibly very robust tools like Tableau Public.

Swivel: First impressions

It would be remiss of me not to also review Swivel, another online, chart sharing solution, similar to Many Eyes, but not as fully-fledged as Tableau Public. One thing I immediately liked were the built-in connections to data sources. Within two clicks I was able to extract data from my Google Analytics account. Swivel then creates a default report from these data - that part wasn't so great - it seemed to be a mash-up of every chart type possible with color distributed with wild abandon.



The default view notwithstanding, there are nice editing options for the charts - the tooltips and visual clues about individual data points are very good. The chart options are the standard basic types, and I feel that Swivel is a quick way to throw a bar chart or pie up onto a website. There are no ways to interact with the data to the same extent you can with Many Eyes (I'm not going to compare Swivel to Tableau - they are completely different animals). The method of embedding is much nicer than Many Eyes, making the chart look much more part of your website and not requiring Java. See below for an example (not my chart).

Normalizing data: Haiti donations by country using Many Eyes

Two things to talk about in this post - I continue my ramblings about the online viz tool Many Eyes, and discuss how normalizing data can provide radically different insights into data.

The data set I'm using is the donations by countries (government and corporations, but not private) to earthquake relief in Haiti. I've seen a few charts around this showing how the US has provided the most funding, but when normalized per capita, Canada and other countries stand out. On a purely data level, and not to denigrate any country's assistance, is this normalization appropriate when the donation sums do not include donations by the public?

Instead it may be more appropriate to normalize by gross domestic product, especially as governments and corporations greatly influence GDP. However, even that's not straightforward as GDP is affected by exchange rate and does not reflect purchasing power within a country. So we could also normalize based on GDP expressed as purchasing power parity, where differences in cost of living are accounted for.

This yields grossly different results, as shown below. I've made all of the bars in each series relative to the largest in that series. Guyana's contribution of a million dollars is massive compared to its GDP expressed in either way, dwarfing other countries' equivalent contributions. This shows that normalization, which is often appropriate, should be chosen carefully and assessed fully when interpreting charts.



Now onto Many Eyes - I've kept the visualization local again, so apologies for those reading without java. I like the result - it was certainly quick to produce and you can play around a little with it. It's not perfect though - to get appropriate height bars meant messing around - I couldn't get a scale to appear on the y-axis. For simple data, especially text based, I think Many Eyes excels, but this would have worked better in Tableau Public.

What I would love to have done would be to have shown this information as cartograms where the area a country occupies on the map is relative to the data value, not land mass. This would have added a visual geographical spin on where donations were coming from, especially for those of us who may have forgotten where Guyana is exactly..

Words on my blog: Many Eyes Viz

I'm playing around with Many Eyes - they have some nice text based visualizations. I'll be looking at their charting options as well. Here's a cloud of words on my blog.



I wish that it would appear a little more embedded - i.e. lose the menu at the top and not be grayed out to begin with.

ER visits due to consumer products: Tableau Public

Tableau Software has just released Tableau Public - a free version of their data visualization tool that will revolutionize how we show information. To showcase its abilities I created the visualization linked below. WARNING: I wanted to push the limits of Tableau - there are 98,000 rows of data shown on the chart, so give it some time to load.

About the data: The NEISS is a database of emergency room visits that involve consumer products collected from 100 hospitals across the country. This is the latest dataset available and covers the entirety of 2008. There were about 370,000 visits in that time frame to these hospitals. As Tableau Public only allows 100,000 rows of data, I used a random function to reduce the dataset.

Using the Visualization: Shown are the 98,000 cases, plotted on the y-axis by age of the patient, and categorized by the type of injury. The lines are colored by body part affected. By default, every product involved is shown. Use the filter on the right to select just a few. For example, deselect "all", and use the magnifying glass to search for just chain saws, select that product, and allow the chart to update. If you mouse over an individual case, you can see the narrative entered by the hospital about the accident.

The chart provides some information about age spread, and the incidence of a particular type of injury, while still allowing you to look at individual cases. I intend to do a lot more with Tableau and this data set - stay tuned for some dashboards. Click the image to interact with the data.

I'm betting your company has data that you'd like to know more about. Data Driven Consulting specializes in collecting, cleaning, and presenting data just like the example above.

Data visualization challenge: my dashboard design

Finally we get to the choices I made for my dashboard entry into Chandoo's data visualization challenge. The challenge already directed us to make the dashboard focused on the two year performance of the sales people. I'll break this post into the five or so parts of the (single screen) dashboard.

Easily overlooked, but vital, is the title of the dashboard - what is it, what time period does the data cover? Under the title is the most expensive part of the screen real estate - the primary information must go here. If I'm a senior manager looking for sales person information, my first questions will always be: who sold the most, how did those sales vary over my chosen time period, how much was sold compared to what was expected?

From this display we see immediately who sold the most and the least  - give the dollar values, they will be needed - the bar chart gives us information about each person's contribution to the sum. The red markers warn of poor sales performance. The sparklines provide us with time trending information, so often missed from data displays. For data that has some sort of periodicity (as sales data tends to), it can be useful to provide a moving average that better reveals overall trends - for example, the moving average is better at showing that everyone experiences a drop in sales part way through the period, but Hansolo's drop was much more abrupt than James Kirk's.

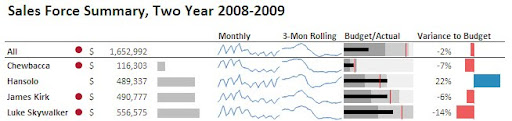

The Budget/Actual shows that only Hansolo met budget, presumably due to the recovery he experienced in the last six months. By not scaling the bars to be all 100%, we provide additional information about what the sales targets were per sales person. As this makes it difficult to compare sales to target across the sales force, the variance to budget bars clarify this.

The sparklines in the top section are scaled differently to each other - otherwise trends are hidden for the sales people with lower revenue. However it would be easy to predict that the user of the dashboard would want to see the information on one chart. The chart provides this, and an in an effort to minimize colors I added a drop down box to highlight one person compared to the other three. When the manager asks "Why was Hans Solo's performance better than the others?" this chart helps answer that.

I feel that the headlines section is an often overlooked part of a dashboard- 3D pie charts and revving speedometers are sexy, words are not. Often though, pithy statements can make a dashboard much more useful and in 20 seconds can provide you with the most important take-home messages. They are especially great in dynamic dashboards, as long as the information regularly changes.

Finally we begin to get to the other measures that perhaps (hopefully) help us understand the sales issues. The coloration on the data table (again, it is important to sometimes show values) helps us understand the areas that sales people sold in - James Kirk sold almost exclusively in the south, Luke sold across the country. The map provides this information in a slightly different way - for a given region, who sold the most?

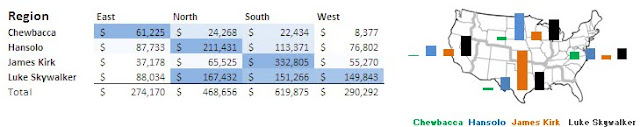

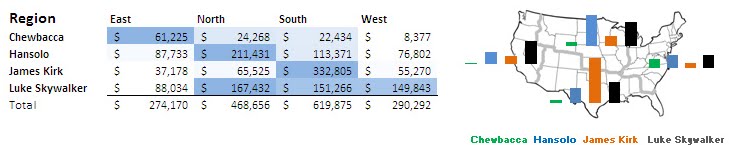

The map also provides information about the states that are in each region - anyway that you can make a dashboard as rich as possible is great, but notice that as this is not the most important information, the region boundaries are just a thicker gray, not a highly colored boundary that detracts from the bars.

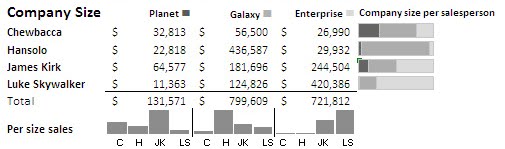

The bottom two displays are formatted in the same way, so here is just the company size visualization. The stacked bar shows the proportion of sales to each size company - Chewbacca sells to all sizes, Luke is much more focused on enterprise sales. The bars underneath show for a particular size company, how are the sales distributed - again, important, because even though Chewabacca sells to enterprise, his overall contribution to the sales for that size company is completely minimal. That's it - thank you again Chandoo, for the opportunity to create this dashboard.

If by some amazing chance you've made it all the way through this post and are still reading, I'd like to remind you that Data Driven Consulting can help your organization create actionable, strategic, highly useful dashboards and reports that will make your business more successful.

Design (in)considerations

A slideshow of some bad design examples I've been collecting. My favorites are the French translation making you find a 3.17mm drill and the chair that's not a chair..

Data visualization challenge: the objective

This is the second part of designing my dashboard for the viz challenge at Chandoo.com. With the raw data ready to tell a story, it was time to understand what the objective was. Unfortunately many dashboards/data displays are so immersed in either the technology or the ability to create pretty things (3D pie charts and revving gauges) that this most important part is overlooked. From the challenge our mission was to:

"help a senior manager understand how the sales people have done in the 24 months"

There are three keys here to achieving the goal: senior - someone high up in the company who has little time to be delving into information - they want the information fast and they want to know what caused the issues they are seeing.

Sales people - they want to know about the performance of the sales people - all of the measures and charts should be centric to these sales people, or at least explain the performance of these sales people.The very first measures shown should describe the sales performance alone.

24 months - he/she is clearly interested in the time trending information - how the sales people have performed over the two year period.

Now in most situations, an objective is rarely as well defined as that - it is the job of the product owners to ensure clarity like this is reached. Is this a one-off? Who will be using it? What do they care about in this instance? How timely does the data need to be? From there you can move to the measures displayed..

Data visualization challenge results, part one: addressing the data

In November I entered a data visualization challenge on Chandoo's excellent Excel and charting blog. I was honored to be voted as having the winning entry (by one vote) - I thought it would be useful to describe the steps I took in designing my entry.

Chandoo provided us with a data file containing two years of raw revenue data for four sales people with information on sales per region, product, and size of company sold to.

Chandoo created the data to show steady growth over the two years, with a little bit of randomness thrown in. As this didn't perhaps allow for an interesting story we were allowed to change the data, but not to add new columns of data (e.g. profit, expenses). Generating data to tell a story is harder than is sounds, especially when you want there to be reasons why one person wasn't performing as well. While this seems a little involved for an online competition, it was very similar to the thinking you would have to do anyway when designing dashboards -  "of the available data, what is the most important to show to the specific end-user for this situation, what can be compared to what to give insight into these data?"

Real data would usually reflect these insights, so I felt I had to make the data more real. I started with stories about the sales, for example: like most sales data, it fluctuates on an X month cycle as sales targets are set and deadlines approach, all the sales people suffered late 2008 due to the recession, some experienced a more abrupt drop in sales, some recovered quicker, Chewbacca (seriously) sells more in the East region, but across all company sizes, Luke Skywalker sells across the country, but mostly to the larger customers.

You can see what I did here (xls 2003) to create the data (second sheet, at the bottom). I created data for the regions that described an overall pattern. From there I created modifiers based on who sold what where, and placed a variable that influenced how strongly these modifiers altered the sales data. With the addition of the Index function, multiple if statements, and randomness thrown in, the data was created. It certainly isn't elegant - I'm sure that it could have been much more concise and still told the stories I wanted, but it worked. Next up: designing the dashboard for the end-user.

Taming the Data Dragon

Thanks to @infoholic on Twitter for bringing this little gem to my attention: "Daddy, what do you do at work?"

Animated visualizations: Don't change the scale!!

I have an unhealthy obsession with weather - partly because we heat with wood, and partly because if it snows enough I get to use the snowblower on the front of my lawn tractor. Consequently I often have the weather radar  up on my browser.

By default, wunderground.com (and most others) show only the most current radar image - other than a total storm size I can pretty much look out of my window to get the same information.

By animating the map, I can see direction of movement - key if you are at the edge of the storm, and very important if it's a coastal storm which tends to sit and rotate rather than moving off. Equally I get to see the speed of the storm's movement, another important variable, and how the intensity of the storm is changing, denoted by the key on the right.

And here's the cardinal sin - if you're going to animate anything with a scale, don't change the scale halfway through the animation.

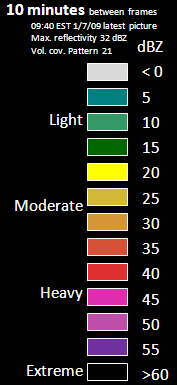

The initial scale has a number of shades of grey below zero (that really could be replaced with just one color, as this just means clouds with some snow blowing around).

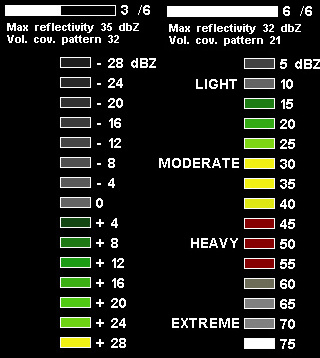

5dBZ on the first scale (light snow) is a dark green. As the intensity of the storm passes a threshold a switch is made to the second scale. Now anything below 10dBZ is light grey, and interestingly, as is anything above 60dBZ. The second scale now also has some descriptions of the intensity. The new scale fails color blind users to a certain degree (mouseover to see) - the 45dBZ plus now looks very much like 15dBZ.

This isn't wunderground.com's fault - I would guess they pull the images from NOAA. I would also venture to guess the change in scale is as a result of the internal workings of the radar changing. Whatever the reason, software creates the scale, so it could be fixed.

One fix: as a change in scale is needed, create two images, one with the old scale, one with the new, for the period of time that that the animation covers. When you have enough frames switch over so that the animation only uses one scale. This isn't a great fix as that scale change will still confuse when viewing over longer time periods or intermittently through the day.

Much better would be to just have one scale (right) - as a member of the public (rather than a pilot for example), I don't think the values below 0dBZ, or above 65dBZ, mean much to me, so you could probably lump all of those into a bucket or two. I've still used a green to red scale, but identified the 'catch all' buckets at the top and bottom with colors outside the gradient. I've also extended the color range through purple. The greens have a lot more blue in them to help colorblind users (mouseover). A few other improvements - specify time between frames so that I can understand velocity (I always have to try to catch what the clock movements are), and state when the most recent picture was taken (not just the time of the current frame).

Exploring crash statistics - an excellent interactive visualization

This series of interactive visualizations by the BBC is quite stunning. The first shows a map of fatal car accidents in the UK. For the area chosen you can see age, sex, and vehicle type breakdowns. Mouseovers show details of the accident as well as links to the news story about it.

The year slicer on the bottom is excellent, allowing you not only to quickly jump between years, but also to see how accidents vary over the months in each year. My only wish is that you could show the markers for all years, allowing you to better identify accident hotspots, and that they superimposed a line across years to show a trend of total accidents.

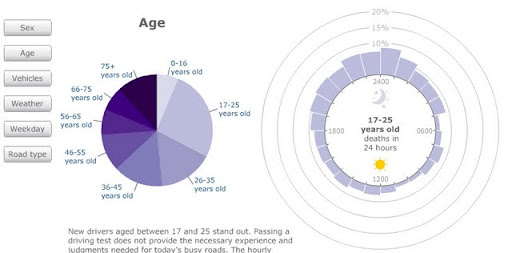

On another tab, they have the breakdown of accidents by time of day. The buttons on the side allow you to see the pie chart and time of day statistics by the category chosen. A pie chart is not my first choice here - a bar chart would be better, but you can click a section of the pie to show the time of day data by just that segment - mouseover the image below to see when young people kill themselves vs. the older population. I think the radial bar chart works very well in this case, especially with the radial gridlines.



In a previous career I was a consultant focusing on fatigue and safety, so these data are of particular interest to me - for example, if you select vehicles, then the pie segment for goods vehicles, you can see the spike in accidents at 4AM as truckers fall asleep at the wheel and crash. The only thing missing (which you rarely see in data like these) is normalization - the risk of driving in the early hours is so much greater than at other times of the day considering the amount of traffic. An excellent example of data visualization.

What will the third dimension bring to data visualization?

I have just started reading Edward Tufte's Envisioning Information. In the first few pages he discusses how we are immersed in a three dimensional world, but our data is stuck on two dimensions, whether on the screen or on paper (3D effects on bars or charts with a third axis do not count..)

The concept of 3D TVs is beginning to take off, with many vendors pushing 3D-ready sets. While glasses-less 3D is a way off, I wonder how this will affect 'standard' data visualizations - I'm not sure that a bar chart with data on a Z-axis that you can actually look around by moving your head, will be much better than the fake 3D ones today that you can rotate around with your mouse.

Perhaps we will start to see 'Sparksurfaces™' instead of 'Sparklines' - move your head to see the data plotted against another variable. I have a suspicion that there won't be any great advances in data visualization, rather we will see even slicker, eye-popping dashboards and charts that may, or may not, be easier to read. Your thoughts?
